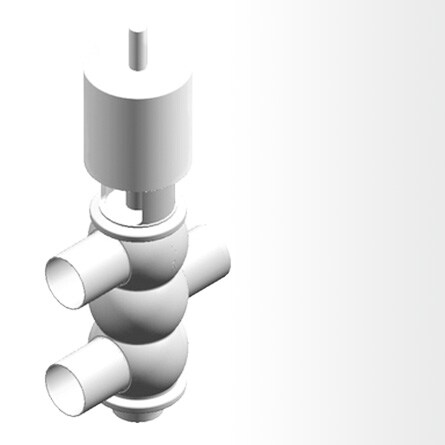

Shuttle valve SC

Shuttle valve SC

Shutting of pipes with systematic adaptations to hygienic process conditions

With shuttle valves for a reliable routing in the hygienic production process, Evoguard provides durable high-quality valve technology in a modular component system.

  • Two-piece threaded valve disk with defined clearance for the sealing rings for easy installation
  • Security against infiltration and seal being torn out
  • Design of the shaft seal:
    • Wiping function protects against contamination ingress
    • Geometry protects the seal against being torn out
  • Actuator allocation according to product pressure:
    • 6 bar
    • 10 bar
    • 22.7 bar
  • Application for high product pressure up to 22.7 bar and to prevent pressure surges
  • Double balanced valve disk
    • Resistant to hammering up to at least 45 bar
    • Prevention of hammering during switching
  • Housing PN 25 free of dead space
    • One-piece: no connection (screw connection, flange, etc.)
    • Required for dismantling the valve insert
    • Dry-running: no sump in the top housing
  • Variable routing
    • Needs not be specified previously
