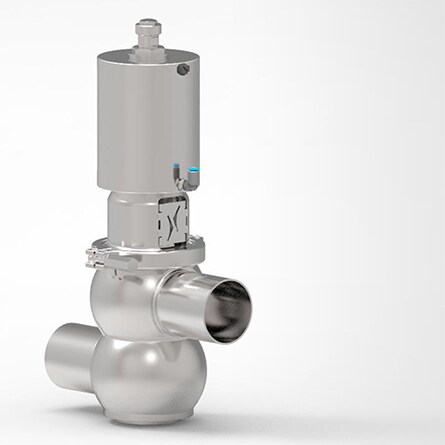

Divert valve SC2

Shutting off pipes with systematic adaptations to hygienic process conditions

With divert valves for a reliable routing in the hygienic production process, Evoguard provides durable high-quality valve technology in a modular component system.

• Cost-effective alternative - connection 0 to gully
• One-piece housing, free from dead area, drainable
• Seal geometry optimized for all applicable process conditions
• Three-piece threaded valve disk with defined clearance for the seal enhances ease of installation
• Actuator size matched to product pressure; 6 bar, 10 bar
• Rotational decoupling on linkage between valve shaft and drive for torsion-free lift motion of the valve disk
• Shaft seal with wiper function protects against contamination ingress
• External air fitting supplied as standard feature
• Internal air flow when a control head is used
